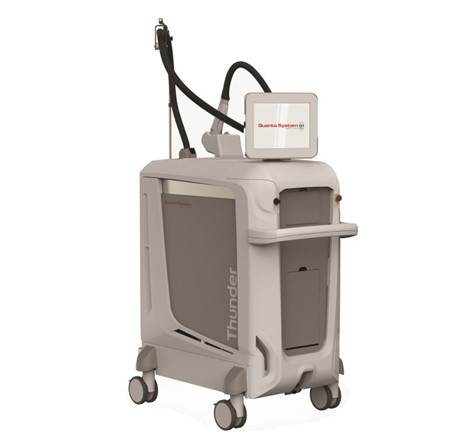

Quanta Thunder MT series
Ultimate power for your Practice
The Quanta Thunder series of lasers is a new addition to the stunning Quanta portfolio. The Quanta Thunder laser is the ultimate tool for laser hair-removal for both a start-up aesthetic practice and an already established aesthetic practice.
Every business needs a point of difference and with the Thunder series you have that in abundance. The Thunder series is designed to offer ultimate speed and client comfort but also offering additional revenue streams from other applications possible with the machine.
It is worth remembering that 46% of all light-based procedures performed in the UK are hair-removal, so this needs to be done right with no compromise, as the word of mouth alone will help you build your business and make it successful.
The Quanta Thunder is another range of lasers systems from Quanta that offer mixed technology the latest innovation in laser technology for hair removal and other treatments.
With the Thunder series you have the option of:
-
High powered Nd:YAG (1064nm) alone - the gold standard for dark skin type hair removal. This is achieved due to safety profile and bulk heating properties.
-
High powered Alexandrite (755nm) alone - the gold standards for light skin types and fine hairs. This is achieved by the high melanin absorption.
-
High powered Nd:YAG and Alexandrite - with the ability to fire individually or sequentially
-
High powered Nd:YAG and Alexandrite Mixed with the ability to fire individually , sequentially or with gold standard mixed technology.
THUMDER MTÂ Advantages
- Two Gold Standard wavelengths in Mixed Emission
- All skin types 1 -6
- All hair types including fine
- Improved results on light coloured hair such as blonde and red.
- Ultimate safety
- Fastest Return on Investment
- OptimisedTMÂ Spot size
- AutoMotionTMÂ Technology
- Optional Qool-air
What is mixed technology?
Until the evolution of the Quanta Duetto and now the Quanta Thunder; laser have been restricted to delivery of one laser wavelength at a time. This was provided either independently or one after the other. The mixed technology mode on the Quanta Thunder allows the user to deliver a mixture of the both Alexandrite and Nd:YAG wavelengths as the same time with varying proportions of each wavelength to suit the client.
This technology allows ultimate hair-removal; targeting 2 different chromophores of the hair follicle at exactly the same time. Also as both energies are delivered together there is less thermal damage, so it provides the ultimate in safety for all skin type’s and all skin colours.
Why do I need mixed technology?
A difficulty in laser hair-removal has centred around the ability to treat dark skins with fine hair. The Quanta Thunder laser is the ultimate platform system for this problem by mixing together in one laser-pulse the 2 gold standard wavelengths of hair removal. By adding a proportion of Alexandrite into the safety of a Nd:YAG pulse fine hairs can be treated on all skin type’s.
Alexandrite (755nm) laser is regarded as the gold standard for hair-removal for skin types 1-3/4 due to the high absorption of this wavelengths in melanin (colouring for hair) This increased affinity means Alexandrite is the gold standard for treating thin, fine and light coloured hairs with little melanin.
Nd:YAG (1064nm) laser is the safest wavelength for treating all skin type’s which means it can be used on dark skin type up to and including skin type 6. It has a low melanin absorption so the wavelengths is not absorbed by colour hence its safety in treating dark skin type’s. It targets the germative cell of the hair follicle of the vascular supply of the hair follicle. This means even it gets results in hair with no melanin in them at all and is effective in blond, red and grey hairs.
 Mixed technology
- Reduced thermal energy, so less pain
- Effective on all skin type
- Effective on all skin colours
- Safe on all skin types including dark skins and tanned
- Treatments for light coloured hairs blonde and red
- Increased results for treating vascular conditions as opposed to Nd:YAG alone
- Increased results for skin rejuvenation
- Quick treatments times
- All year around treatments
Mixed technology is the ultimate decision for any practice and latest innovation that will take the world by storm.
Mixed Technology
The mixed technology Thunder laser gives the Practitioner the ultimate hair removal machine, offering clients the ultimate hair-removal experience.
The Thunder series MT allows the user to alter both fluence, pulse-duration and sequence of delivery for increased safety and effectiveness.
- Reduced thermal energy, so less pain
- Effective on all skin type
- Effective on all skin colours
- Safe on all skin types including dark skins and tanned
- Treatments for light coloured hairs blonde and red
- Increased results for treating vascular conditions as opposed to Nd:YAG alone
- Increased results for skin rejuvenation
- Quick treatments times
- All year around treatments
Mixed technology is the ultimate decision for any practice and latest innovation that will take the world by storm.

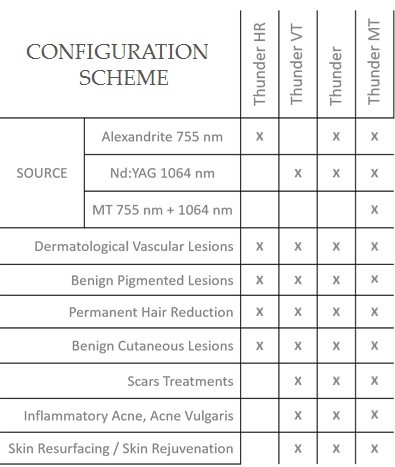

Configuration scheme
Â
Quanta Thunder MT series?
Click on list item below to view images
- Skin Rejuvenation
- Vascular Lesion
- Hair Removal
- Hair Removal (2)
- Hair Removal (3)
Key Features
Optimised spot
The Quanta Thunder series of lasers offer users OptishapeTM hand-pieces, to create an optimised spot shape (super elliptical) The optimised spot shape is nearly square but due to its shape means there is absolutely no crossover of the laser and no overlap.

The system also has the option of the Optiscan scanner.
This has multiple scanning modes tailored to treatment to reduce heat accumulation in the tissue and therefore improve patient comfort whilst ensuring homologous energy distribution for optimum results
Â

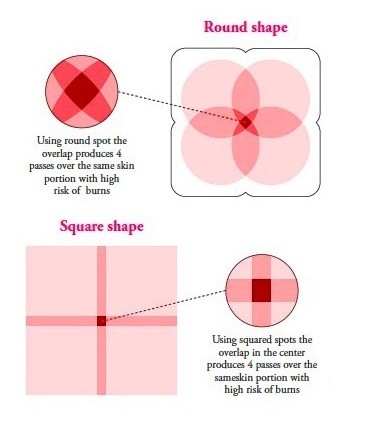

What are super-elliptical spots?
-
The major problem to be solved in Hair removal to speed-up treatments is the Overlap.
-
This event can cause high values of fluence in certain points with a greater risks of burns and this can lead to an increase in lateral effects especially in darker phototypes.
-
Super elliptical spots are able to reduce these risks guaranteeing only a minimal overlap with a quite perfect fluence uniformity for the best performances in Hair Removal.

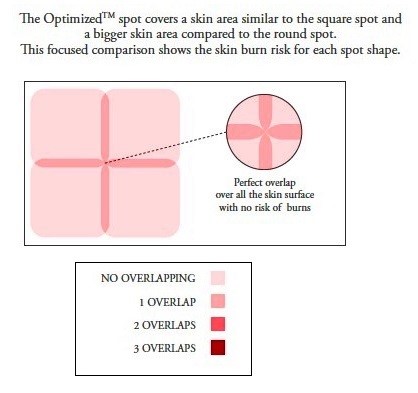

Take a look at the diagram to see the benefits of Optimimsed

Cooling
The Quanta thunder series has an integrated adapter so the cooler is connected directly the headpiece of scanner.
We have 2 options for a cooler:Â Â
- The standard Zimmer Cryo6
- Or the new Qool-air
which is attachable to and controlled by the laser.
Speed

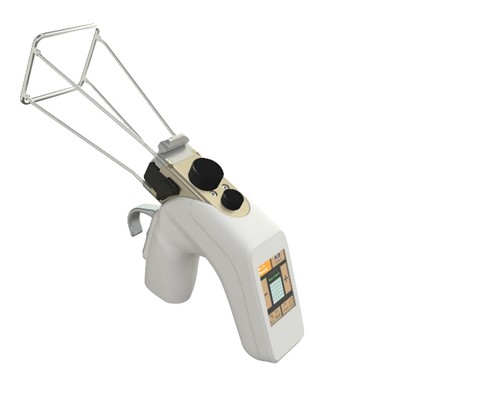

The Quanta thunder series has the option of the optiscan
OptiScan with AutoMotion technology (pain free mode) and semi-automatic for fast treatments
-
Spot size of 9x9 mm
-
scan area up to 54x54 mm
-
Rep rate up to 15Hz
-
755nm up to 21 J
-
1064nm up to 41 J
-
755 + 1064 nm up to 12 + 18 J
-
Touch screen
-
4 different shapes and sizes
-
3 filling modes
-
Integrated skin cooling system
Â
Frequently asked questions
How does it compare to other laser systems?
Mixed technology is a unique technology and only 2 manufactures’ offer this is the world today.
The Thunder offers mixed technology at a very fast rate to delivery pain free, fast, ultimately effective hair removal.
The Duetto meantime offers fast hair removal but the ability to add of further applications so also is the ultimate platform system wit hthe ability to add
- IPL
- 2940nm
No other laser systems in the world offers this choice coupled with these results.
Does the Thunder just treat hair?
Whilst the Thunder is the gold standard n hair removal it can also treat thanks to its mixed technology and single emissions.
- Better results for vascular treatments such as thread and leg veins
- Vascular lesions
- Better results for skin rejuvenation
- Pigmented lesions treated with alexandrite such as freckles and sun damage
- Podiatry treatments such as fungal toes nail and warts/verrucae
- Skin tightening
- Wrinkles
Howe many sessions of hair removal will I need?
The quanta thunder will achieve results typically in 5-6 sessions which is much more efficient than other systems that will need 6- 10 sessions. Give your clients the ultimate treatment the word of mouth will sell even more treatments for you.
What comes with the system?
Full unlimited training
Comprehensive marketing pack including - Red carpet event, Point of sale material, Images and videos, patient leaflets, consultation forms,
Numerous spot sizes including vascular headpiece
Enquire today
